# Environmental Cyclones

1. [Home](https://lynton-sb3-mesalabs-20969579.hs-sites.com)
2. caret-right icon

   [Our Solutions](https://lynton-sb3-mesalabs-20969579.hs-sites.com/solutions)
3. caret-right icon

   <https://lynton-sb3-mesalabs-20969579.hs-sites.com/>
4. caret-right icon

   [Products](https://lynton-sb3-mesalabs-20969579.hs-sites.com/products/)
5. caret-right icon

   Environmental Cyclones

[Cyclone Selector Chart
](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/BGI_CycloneSelectorChart_2.pdf)This chart allows users to quickly chose an appropriate cyclone for measuring PM10, PM4, PM2.5, and PM1 at a range of flow rates.

[Cyclone Calculator](http://monitoring.mesalabs.com/Downloads/BGI/cyclone_calculator.xlsx)
This calculator demonstrates the performance of each cyclone determined by a mathematical model extrapolated from actual test data. For each BGI cyclone, users can enter their desired flow rate to determine the resulting D50 cut point. This calculator also provides the estimated pressure drop associated with a chosen flow rate. (Opens as a Microsoft Excel file)

![environmental-cyclones-supporting-02](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/website/solutions/solutions/environmental%20controls%20and%20air%20quality/Equipment%20and%20Accessories/Environmental%20Cyclones/environmental-cyclones-supporting-02.png "environmental-cyclones-supporting-02")

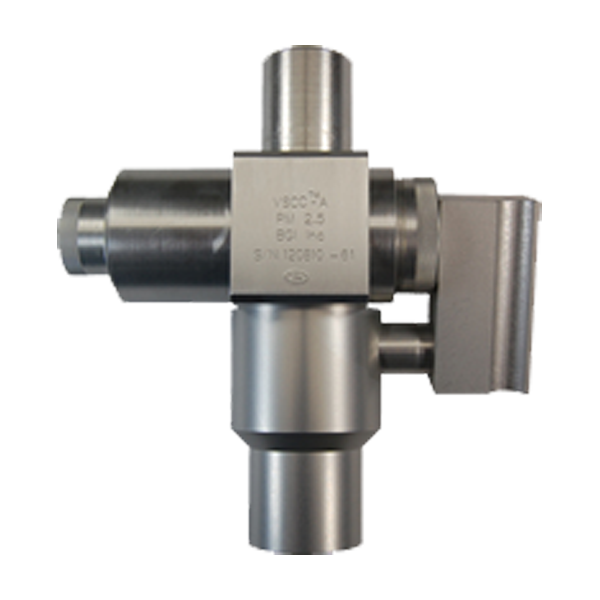

#### PM2.5 Very Sharp Cut Cyclone (VSCC)

- Particle Size Cut PM2.5 at 16.67 LPM
- Model VSCCB for use in BGI PQ200 samplers and Model VSCCA for use in all other FRM samplers
- U.S. EPA approved PM2.5 separator (40 CFR 50 Appendix L Paragraph 7.3.4)
- Model (VSCCB) for BGI PQ200 & PQ200A FRM Samplers
- U.S. EPA Federal Reference Method Designated (RFPS-0498-116)
- PM2.5 Separator for ALL Commercial FRM Samplers
- Model (VSCCA) for RAASTM, PARTI-SOLTM & MASSTM
- PM2.5 Continuous Particulate Monitor Inlet
- Indoor Air Quality Sampling Inlet
- Speciation and Air Toxics Sampling
- Laboratory Aerosol Research Separator
- Direct replacement for WINS without tools
- Media type: 47mm

[ SHOP NOW ](https://shop.mesalabs.com/2265)

---

![environmental-cyclones-supporting-01](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/website/solutions/solutions/environmental%20controls%20and%20air%20quality/Equipment%20and%20Accessories/Environmental%20Cyclones/environmental-cyclones-supporting-01.png "environmental-cyclones-supporting-01")

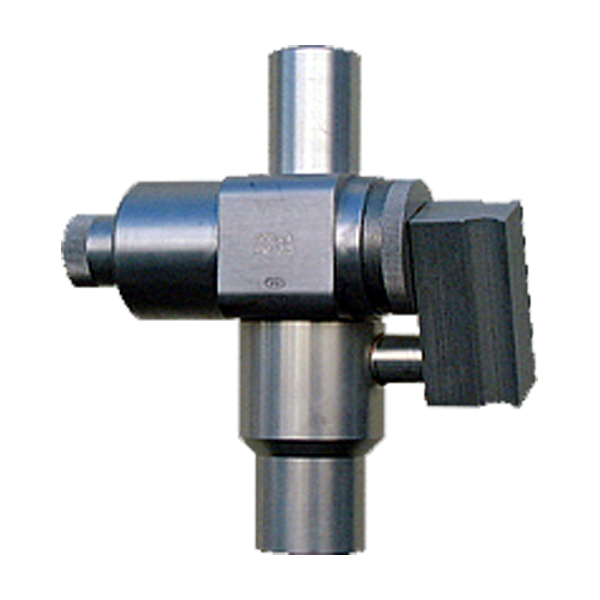

#### PM2.5 Sharp Cut Cyclone (SCC)

- Particle Size Cut PM2.5 at 16.67 LPM
- Ambient PM2.5 sampling
- Indoor Air Quality sampling
- Speciation sampling
- PM2.5 ”Type 3” sampling
- Direct replacement for WINS without tools
- Media type: 47mm

[ SHOP NOW ](https://shop.mesalabs.com/3541)

---

![environmental-cyclones-main](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/website/solutions/solutions/environmental%20controls%20and%20air%20quality/Equipment%20and%20Accessories/Environmental%20Cyclones/environmental-cyclones-main.png "environmental-cyclones-main")

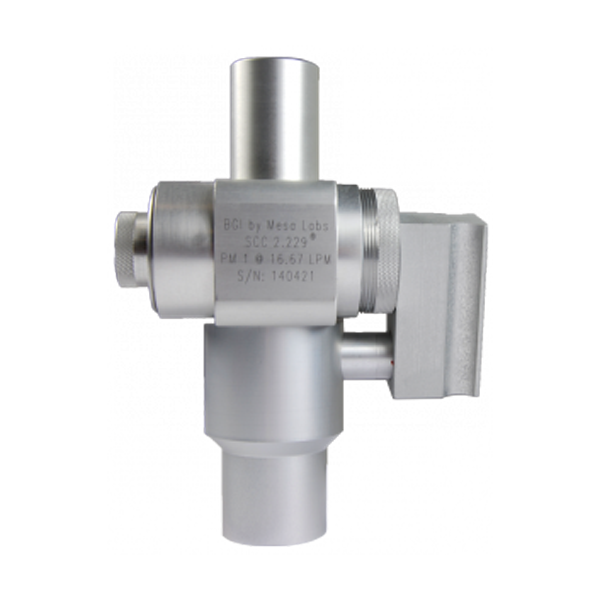

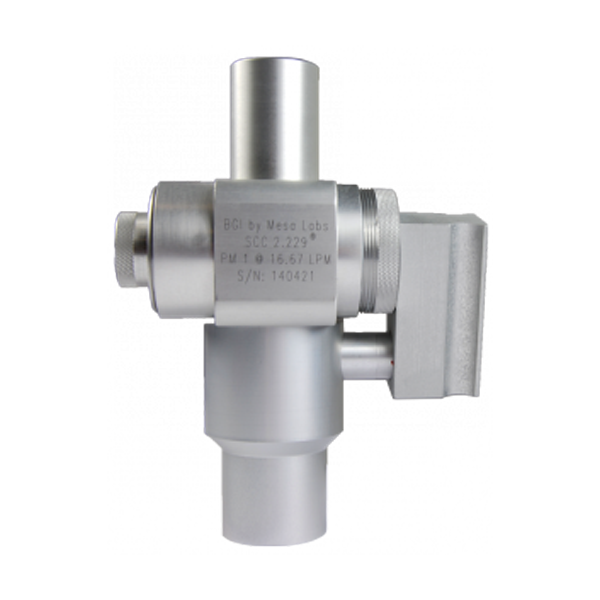

#### PM1 Sharp Cut Cyclone (SCC 2.229)

- PM1 at 16.67 LPM
- Ambient PM1 sampling
- Indoor Air Quality sampling
- Speciation sampling
- PM1 “Type 3” sampling
- Direct replacement for WINS without tools
- Media type: 47mm

[ SHOP NOW ](https://shop.mesalabs.com/3542)

 Document Downloads

### Document Downloads

- [Environmental Sharp Cut Cyclones Instructions
  ](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/scc_photo_3.pdf)
- [Sharp Cut Cyclones Instructions and Maintenance
  ](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/SCC_PM2.5_-MANUAL.pdf)
- [SCC2.229 PM1 Cyclone Manual
  ](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/SCC-2.229_PM1_MANUAL.pdf)
- [SCC-2.354 Instructions for Photometers
  ](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/SCC-2.354-MANUAL.pdf)
- [VSCC Manual](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/vscc_manual.pdf)

---
