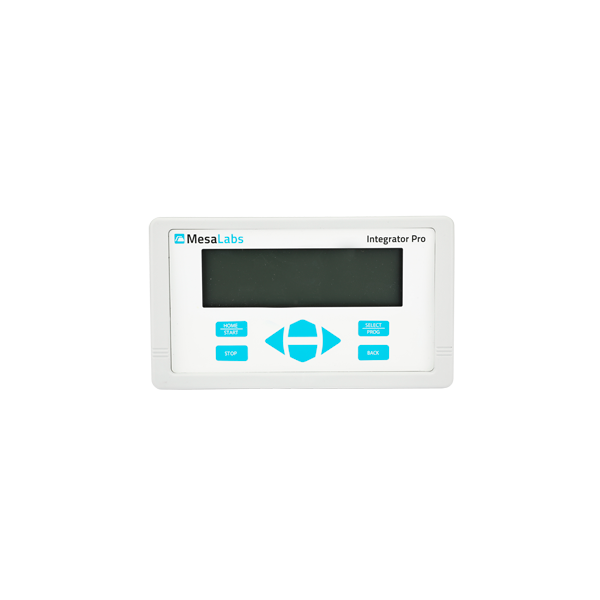

--- title: Integrator Pro | Mesa Labs description: The Integrator Pro powers and controls mass flow devices and communicates with the Mesa Met Lab Series primary piston prover for precise calibration. image: https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/mesalabs%20website/solutions/solutions/industrial%20health%20and%20safety/Products/Integrator%20Pro/integrator-pro-main.jpg.png --- # Integrator Pro 1. [Home](https://lynton-sb3-mesalabs-20969579.hs-sites.com) 2. caret-right icon [Our Solutions](https://lynton-sb3-mesalabs-20969579.hs-sites.com/solutions) 3. caret-right icon 4. caret-right icon [Products](https://lynton-sb3-mesalabs-20969579.hs-sites.com/products/) 5. caret-right icon Integrator Pro ![integrator-pro-main.jpg](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hs-fs/hubfs/mesalabs%20website/solutions/solutions/industrial%20health%20and%20safety/Products/Integrator%20Pro/integrator-pro-main.jpg.png?width=600&height=600&name=integrator-pro-main.jpg.png) ![integrator-pro-main.jpg](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hs-fs/hubfs/mesalabs%20website/solutions/solutions/industrial%20health%20and%20safety/Products/Integrator%20Pro/integrator-pro-main.jpg.png?width=45&height=45&name=integrator-pro-main.jpg.png) ## MFC & MFM Command, Control and Readout Device for Laboratory and Industrial Process Control Applications The Integrator Pro is designed for use with the Mesa Met Lab® Series of primary piston provers for the precise, high-speed calibration of most industry standard MFCs and MFMs. **Features**: - Connects to your mass flow devices via manufacturer-specific cables - Offers manual operation mode for easy calibration set up and verifications of mass flow devices - Simultaneously displays your Met Lab Series’ flow measurements, your device’s readouts and deviation percentages - PC command interface for automated calibration with DryCal Pro or user created software - Commands your mass flow controllers to generate specific flows, while simultaneously indicating – and verifying – their output - Generates user-entered setpoints for most mass flow controllers - Provides diagnostic readings of setpoint and mass flow device output, in Milliamps or Volts [ GET A QUOTE ](http://lynton-sb3-mesalabs-20969579.hs-sites.com/occupational-health-safety/quote-request?which_of_our_products_are_you_inquiring_about_=DryCal%20Metrology%20Series) [ Contact Mesa ](http://lynton-sb3-mesalabs-20969579.hs-sites.com/-temporary-slug-05bfbe46-6cb8-4454-b003-87e9d0fa194f) The Integrator Pro control and readout device used to perform in-house verifications and multi-setpoint calibrations of your critical analog mass flow devices. The Integrator Pro powers and controls mass flow devices, allowing for in-house verifications and multipoint calibrations.  You can also combine our new Integrator Pro with one of our DryCal primary piston provers to set up an analog MFC and MFM calibration station. It can power and control up to two voltage and two current mass flow devices at the same time. Data can be collected directly in the DryCal Pro software for instant flow comparisons and deviation percentages. While it powers and controls your mass flow control devices, the Integrator Pro also communicates directly with your Mesa Met Lab® Series primary piston prover for instant flow comparisons and deviation percentages, comprehensively presented on its LCD display. Using available valve drivers and bi-directional communication, our gas flow calibration solution is customizable, meaning your organization gets exactly the level of calibration control you need. Technical Specifications Document Downloads ### Technical Specifications **Programmable Values:** Channel Ranges: Off, 0-20mA, 4-20mA, 0-10V, 2-10V, 0-5V, 1-5V **Output Power Supply Voltage: ** +/- 15V **Channel Interface** - **Input:** - Interface: DA15S - Analog Current: 0-20.000 mA +0.075% Zi 100 ohm - Analog Voltage: 0-10.000 V +0.075% - **Output:** - Interface: DA15S - Analog Current: 0-20.000 mA +0.075% - Analog Voltage: 0-10.000 V +0.024% - **Serial Port:** RS232 - **Power:** 12-24 VDC 65-33 mA 0.8w - **Compliances:** CE Mark EN61326-1, FCC Part15 Class A, FCC Part 68, RoHS ### Document Downloads - [Integrator Pro Specification Sheet](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/IntegratorPro.15AUG2018.pdf) - [Integrator Pro Manual](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/Integrator-Pro-Manual-Rev-C.pdf) - [DryCal 800 Specification Sheet](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/DryCal-800-Rev-B.pdf) - [DryCal 1020 Specification Sheet](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/DryCal1020.RevI_.pdf) - [DryCal 1500 Specification Sheet](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/DryCal1500.15AUG2018.pdf) - [DryCal Bi-Directional Communications Protocol](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hubfs/inmind/public/Metrology-Series-Communication-Protocol-Rev-G.pdf) ### Related products #### [![DryCal® 1020 & 1500](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hs-fs/hubfs/mesalabs%20website/solutions/solutions/industrial%20health%20and%20safety/Products/High%20Capacity%20Gas%20Flow%20Calibrator/high-capacity-gas-flow-calibrator-main.png?width=300&height=300&name=high-capacity-gas-flow-calibrator-main.png) DryCal® 1020 & 1500 This high-capacity gas flow calibrator has more than ten times the volume of any other piston prover on the market and is only ninety pounds.](http://lynton-sb3-mesalabs-20969579.hs-sites.com/products/occupational-health-safety/drycal-1020) #### [![DryCal® 800](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hs-fs/hubfs/mesalabs%20website/solutions/solutions/industrial%20health%20and%20safety/Products/Primary%20Flow%20Standards%20for%20Metrology%20Laboratory%20and%20Industrial%20Applications/primary-flow-standards-main.jpg.png?width=300&height=300&name=primary-flow-standards-main.jpg.png) DryCal® 800 The DryCal 800 is four times more accurate than most flow meters, small and lightweight, and customizable to your specific needs.](http://lynton-sb3-mesalabs-20969579.hs-sites.com/products/occupational-health-safety/drycal-800) #### [![DryCal® Environmental Accessories](https://lynton-sb3-mesalabs-20969579.hs-sites.com/hs-fs/hubfs/website/solutions/solutions/sterilization%20and%20cleaning%20monitoring/Products/Apex%20Biological%20Indicators/apex-biological-indicators-main.jpg.png?width=300&height=300&name=apex-biological-indicators-main.jpg.png) DryCal® Environmental Accessories Mesa Labs offers a variety of accessories to support your Defender, FlexCal, and DryCal products.](http://lynton-sb3-mesalabs-20969579.hs-sites.com/products/occupational-health-safety/environmental-accessories) ### Related services [ #### [Placeholder] Equipment Rentals (OHS) Learn more ](http://lynton-sb3-mesalabs-20969579.hs-sites.com/-temporary-slug-4e5ad85c-9263-44ee-a947-01bd01811fe1) [ #### [Placeholder] Equipment Calibration & Repair (OHS) Learn more ](http://lynton-sb3-mesalabs-20969579.hs-sites.com/-temporary-slug-0a6e515c-bb66-4d57-84ac-a46774e290aa)
